Yongjia Liaoseal Co.,Ltd is one of the leading China cable seal series manufacturers, welcome to wholesale cheap cable seal series from our factory.
Product Description:

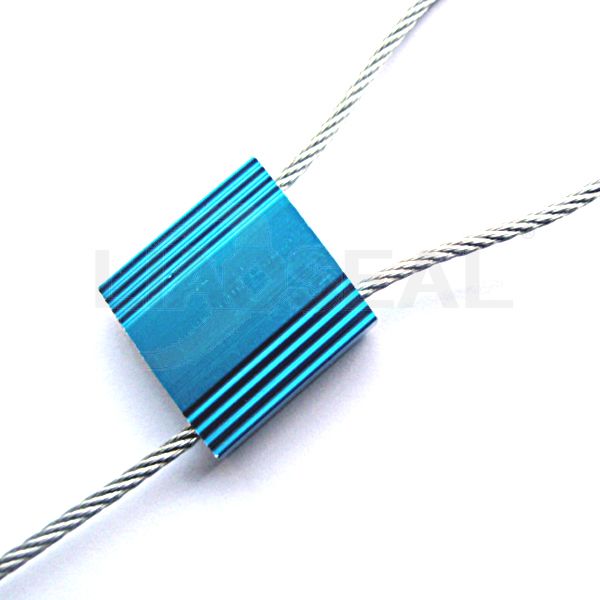

The cable seal consist of a cable and a locking mechanism. On a one-piece seal, the locking or seizing mechanism is permanently attached to one end of the cable. A two-piece cable seal has a separate locking mechanism which slips onto the cable or prefabricated cable end.
Recommended Applications:
Drums and Barrels, Freight Containers, Gates, Hopper Rail Cars, Rail Car Doors, Shipping / ISO Containers, Storage Units, Tanker Trucks, Truck Doors, Utility Meters and more.
Features:
Diameter of cable: 1.5mm-5.0mm
Standard length: 250mm, any length is available
Adjustable length cable seal for
cargo doors, lids, drums, containers
Pull up tight by hand and remove with cable cutter
|
Model |
Diameter of cable |
Tensile Strength |
Body Size |
Packaging |
|
WJ-H1.5 |
1.5mm |
3.5KN |
25 X26.5mm |
8.96kg(500 pcs) |
|
WJ-H2.5 |
2.5mm |
6KN |
25 X27mm |
11.4kg(500 pcs) |
|
WJ-H3.0 |
3.0mm |
10KN |
32 X35mm |
16.5kg(500 pcs) |
|
WJ-H3.5 |
3.5mm |
12KN |
35 X40.5mm |
12.6kg(250 pcs) |
|
WJ-H5.0 |
5.0mm |
15KN |
35 X40mm |
17.2kg(250 pcs) |
Material:
Body: Aluminum alloy
Internal Locking Components: Zinc and Steel
Cable: Braided aeronautics steel-wire rope
Printing:
Laser printing
Sequenced numbering & Logos available upon request
Bar-code is available
Colors:
Red, green, yellow, black, blue, orange
